Product Description

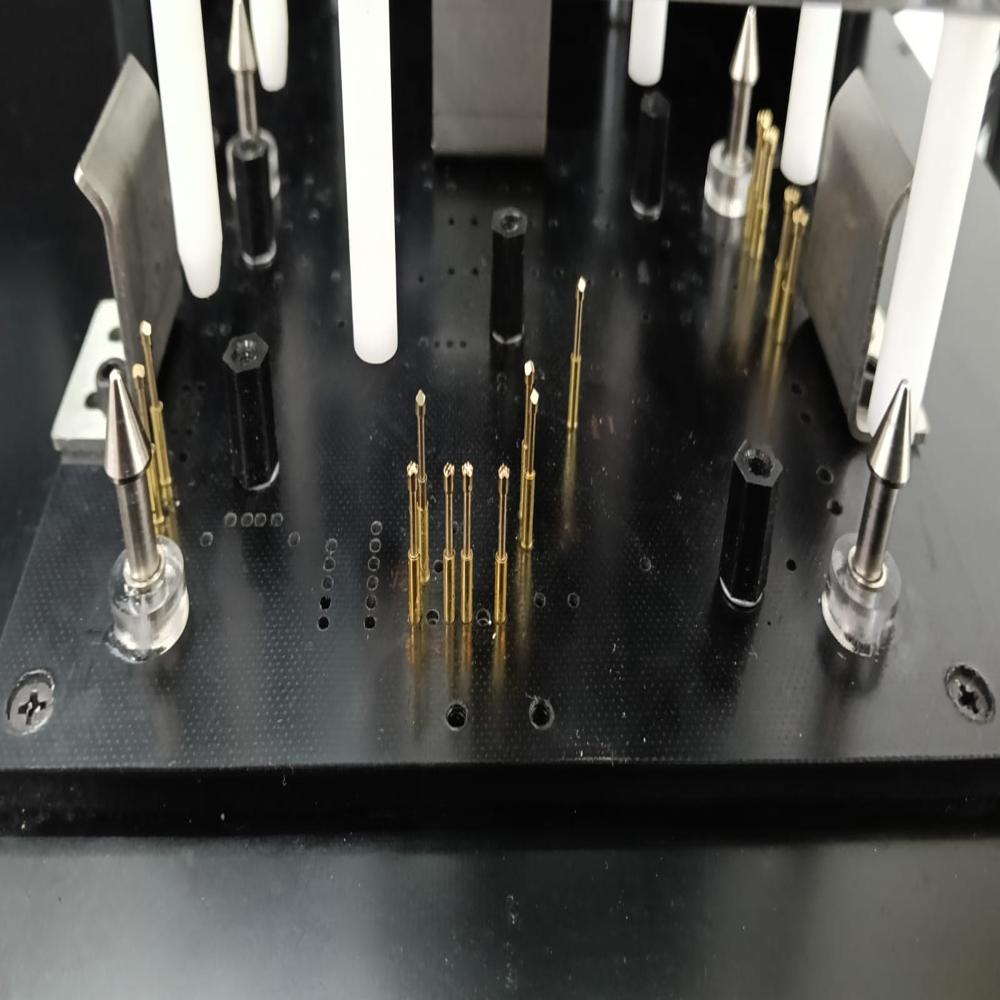

Duas Engineers manufactures PLC Controlled Dedicated Test Jigs designed for fast, accurate, and fully automated testing of Printed Circuit Board Assemblies (PCBAs) and electronic products. Our PLC-based test jigs provide precise control of the testing sequence, ensuring consistent performance, reduced operator intervention, and improved production efficiency in high-volume manufacturing environments.

Each test jig is custom-designed for a specific product and integrates seamlessly with PLC controllers, sensors, pneumatic systems, and HMI interfaces. The system performs automatic test execution, provides real-time PASS/FAIL indications, records test data, and supports communication with MES and ERP systems for complete production traceability.

• Custom-designed dedicated test jig for specific PCBAs or electronic products
• PLC-controlled automatic testing sequence
• High-precision pogo pin interface for reliable electrical contact
• Pneumatic or manual fixture operation
• HMI touchscreen for easy operation and monitoring
• Automatic PASS/FAIL indication with visual and audible alerts
• Barcode and QR code scanner integration
• Data logging and report generation
• MES, ERP, and PLC communication support
• Rugged industrial construction with low maintenance

• Functional Circuit Testing (FCT)
