Product Details:
- Warranty 1 year
- Usage Industrial
- Material Steel
- Size Standard
- Hardness Yes
- Product Type Pcb Testing jig
- Color Black
20000.0 INR/Piece
X

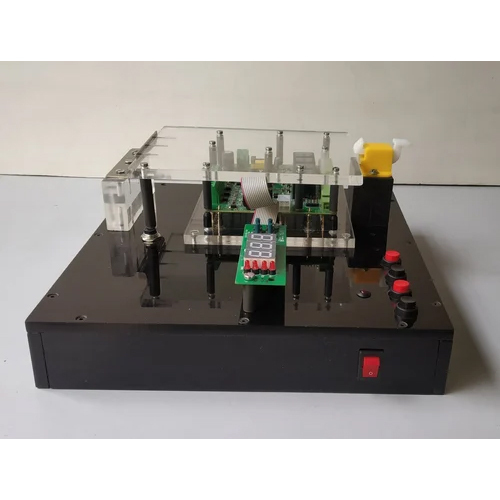

Precise Pcb Testing Jig Price And Quantity
- 20000.0 INR/Piece
- 1 Piece
Precise Pcb Testing Jig Product Specifications
- Yes
- Steel
- Black
- Pcb Testing jig
- 1 year
- Industrial
- Standard
Precise Pcb Testing Jig Trade Information
- 200 Piece Per Month
- 7 Days
Product Description
Key Types of Testing Jigs
- Manual Universal Frames: Standardized mechanical frames with adjustable plates, often made of bakelite and acrylic, used for various board sizes.
- Bed of Nails: Uses a series of spring-loaded "pogo pins" to make contact with specific test pads on the PCB simultaneously.
- Functional Test Jigs (FCT): Simulates the board's final operating environment to test digital I/O, voltage, and frequency.
- Automated Jigs: High-end solutions that test functionality and integrity without manual intervention, often integrated with a PC for data logging.
Engineered for Industrial Efficiency
Our Precise PCB Testing Jig is designed to streamline quality control in electronics manufacturing. With a sturdy steel build and verified hardness, it delivers accurate and efficient PCB testing for industrial applications. Its standard size and ergonomic design facilitate integration into existing workflows, enhancing productivity and minimizing downtime.
Reliable Performance with Assured Warranty
This testing jig is backed by a 1-year warranty, reflecting our commitment to product longevity and customer confidence. Engineered and supplied directly from India, it undergoes rigorous quality checks, guaranteeing performance in demanding industrial settings. Count on prompt customer support and seamless warranty processes as part of our dedicated after-sales service.
FAQ's of Precise Pcb Testing Jig:
Q: How do I use the Precise PCB Testing Jig in an industrial environment?
A: Simply place your PCB onto the jig's standardized platform, ensuring proper alignment. Secure it in place and initiate the prescribed testing procedures. Its steel construction and precise design ensure stable contact for accurate and repeatable measurements.Q: What materials are used in the construction of this testing jig?
A: The Precise PCB Testing Jig is constructed from high-quality steel, offering substantial durability and consistent hardness, making it suitable for rigorous industrial usage.Q: When should I consider replacing or servicing the PCB Testing Jig?
A: With standard usage, the jig's robust build typically lasts beyond the 1-year warranty period. Replace or service it if you notice persistent mechanical wear, loss of alignment precision, or if required by your maintenance schedule.Q: Where can I purchase or source the Precise PCB Testing Jig?
A: You can purchase this jig directly from manufacturers or suppliers based in India. Official channels and verified distributors ensure that you receive authentic products and full warranty coverage.Q: What is the process for claiming the 1-year warranty?
A: If an issue arises within the warranty period, contact your supplier or manufacturer with your purchase details. Most claims are processed promptly, and defective jigs may be repaired or replaced according to warranty terms.Q: How does this jig benefit my industrial PCB testing process?
A: Its sturdy steel construction and standardized features facilitate reliable, repeatable, and efficient PCB testing, reducing error rates and maximizing throughput in your production line.Q: What makes the Precise PCB Testing Jig suitable for industrial use?
A: The jig's steel body, confirmed hardness, and 1-year warranty make it ideal for heavy-duty, frequent testing in demanding industrial conditions, ensuring it meets rigorous operational requirements.Tell us about your requirement
